Auto Bag / AutoBag Machine with FNSKU Label Printer/E-commerce Fulfillment Bagging
- Model
- BYG-DBS03P
Item specifics
- Product name
- Auto Bagger
- Speed
- 20-25bags/minute
- Apply bag size
- L80mm -650mm W30mm -400mm
- Bag thickness
- single layer 0.04-0.1mm
- Power supply
- 1PH 220V/110V 50HZ/60HZ
- Machine Size
- L700*W650*H620
- Machine Net Wight
- 65kg
Review
Description
Product Description

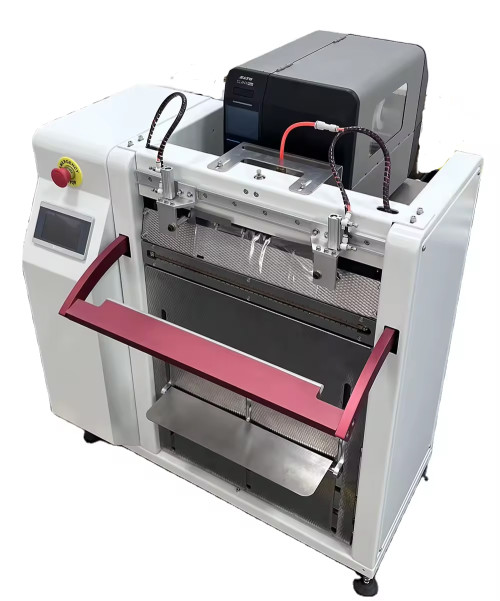

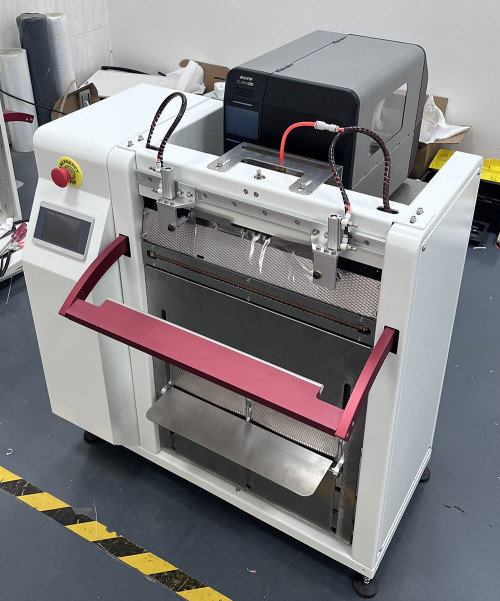

AutoBag Machine Auto Bagger
Small, simple and easy-to-use ultimate solution for man-machine collaborative packaging system BYG-DBS series bagging machine is specially designed to assist manual packaging, reduce manual work procedures, reduce manual work intensity,simple operation, friendly interface, and only 2 steps for parametersetting to put into production.
The function of BYG-DBS series bagging machine has a standardFootswitch, Push-to-Seal, or via automatic cycle control , can be single package, continuous package, s e package, can set single output and total output statistics.
The unique sealing action design and preheating time control of the BYG-DBS series bagging machine ensure that the sealing is smooth, firm and beautiful, and the heating wire has a long life.
The self-patented spark sensor/ bag length detection sensor read the length of bag automatically ensures the accuracy of the sealing position .
The BYG-DBS series is equipped with an additional TTO printer, which can directly print high-resolution pictures, text, barcodes, and QR codes on the packaging bags, eliminating the need for additional labeling work.
Intelligent thermal transfer system, flexible and convenient label selection. Provides convenience for flexible packaging of various products. The printing cost of a single bag can be as low as 0.001-0.0015$
Product Application
Specification
|
Machine
|
Auto Bagger BYG-DBS03P
|
|
Application
|
Food, Beverage, Commodity, MEDICAL, Chemical, Machinery & Hardware, APPAREL, Textiles
|
|
Packaging Type
|
Stand-up Pouch, Bags, Film, Pouch
|
|
Voltage
|
220V/110V 50HZ/60HZ
|
Dimension(L*W*H) | L700*W650*H620 |
Weight | 65KG |
Certification | CE |
Speed | 15-20bags/minute |
Apply bag size | DBS02 W30mm -250mm L80mm -650mm (available customized size) DBS03 W30mm -400mm L80mm -650mm |
Bag thickness | single layer 0.04-0.1mm |
